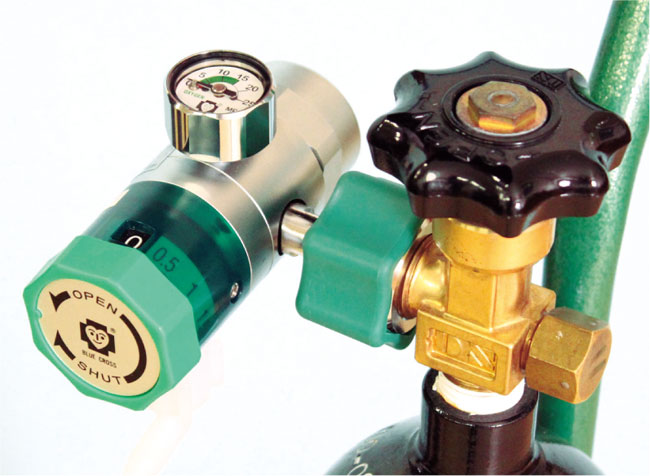

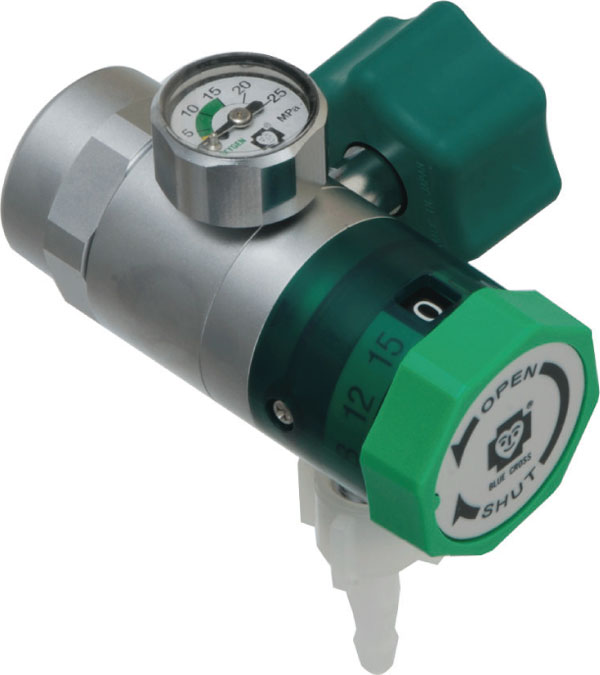

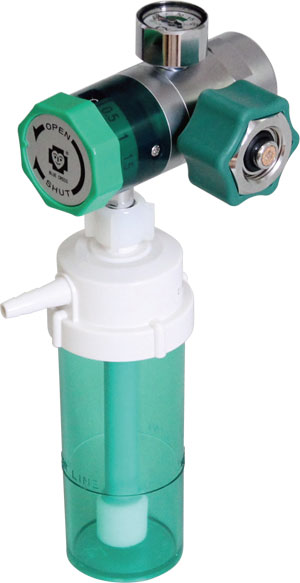

BLUE CROSS® EMAGIN® DIAL OXYGEN REGULATOR
For hospotals, clinics and emergency sites
■ EMAGIN Dial Regulator can be set to 15L/min. at the maximum,
■ 　　and can be set every 0.5 L/min., so it can be used widely from hospitals, clinics

to emergency sites.

　Oxygen flow rate　 　0.5・1・1.5・2・3・4・5・6・8・12・15　L/min　


T1610010　D-15H

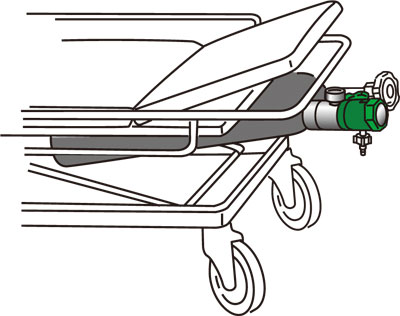

■ As a dial regulator, it can be used at an angle on a stretcher.
　　★ The small gauge is designed to minimize damage if it accidently falls or is hits.

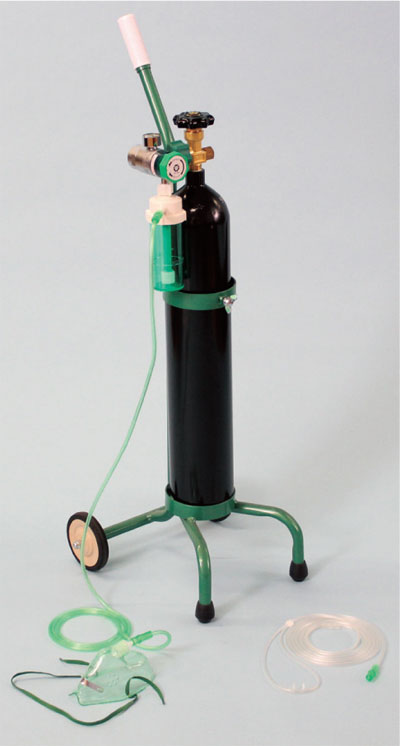

An example of optional items

T1610230　OX-500VDX
OX-500VDX OX-500VDX OX-500VDX
D-15H　 　Dial Regulator with humidifier bottle　 　1
No.4-1　 　Oxygen Mask with tube　 　1
No.6-1S　 　Oxygen Cannula with tube　 　1
OC-3.5　 　Oxygen Cylinder 3.5L　 　1
T1620010　CC-500V　
 　Vertical Cylinder Cart V-type 　1


D-15
T1610020　D-15
without Humidifier

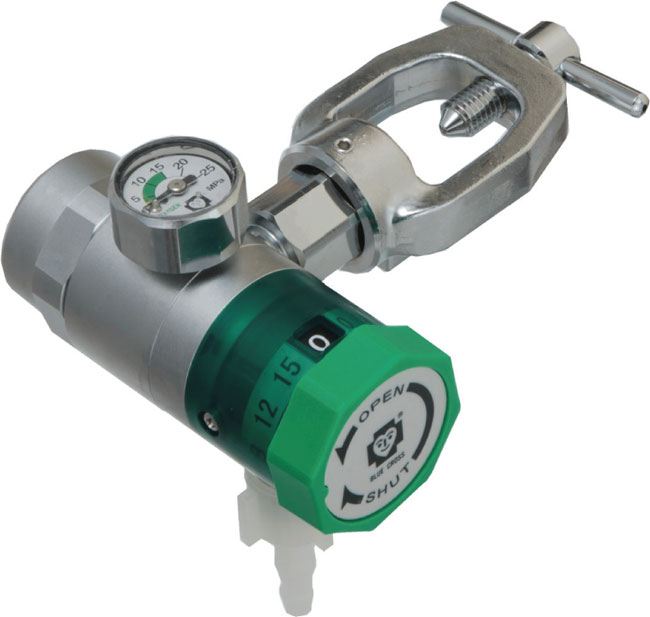

D-15 YOKE型
Connector Yoke Type without Humidifier
T1610040　D-Y15
T1610030　D-Y15H
※Please select the appropriate connector for
the cylinder to be used.

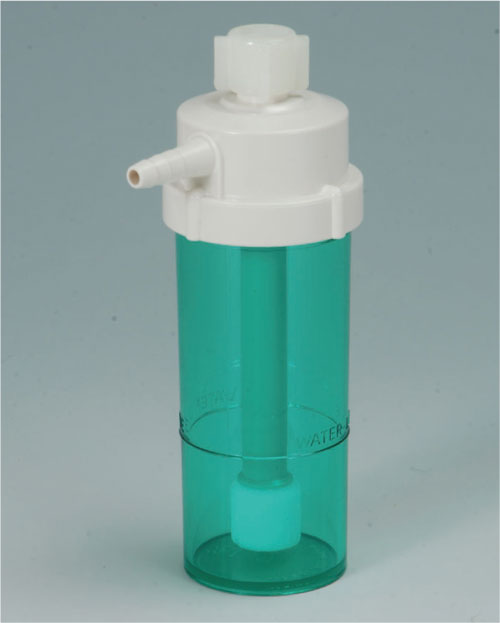

Humidifier
Humidifier
T1610360　2020-H

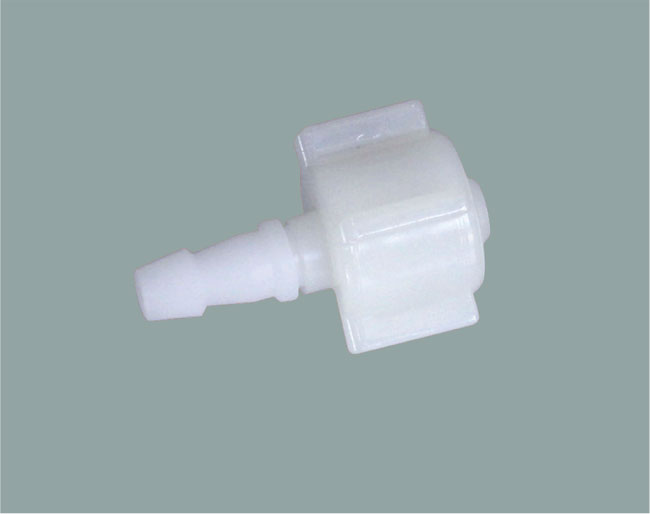

 Hose Connector B set
T1620060
Hose Connector
B set

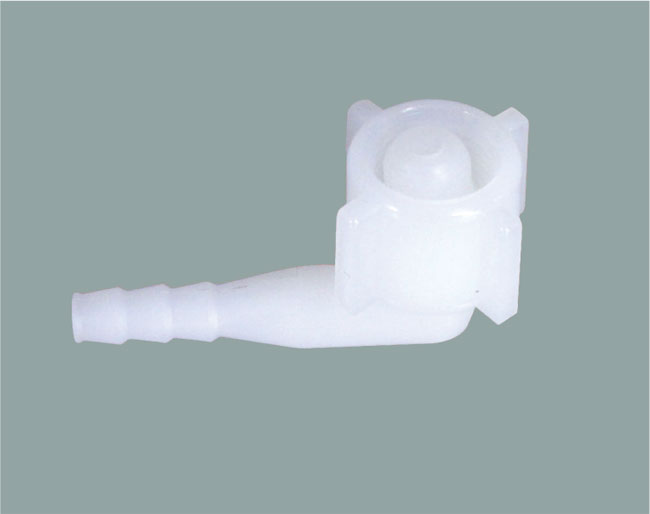

Hose Connector L set
T1620070
Hose Connector
L set

BLUE CROSS® EMAGIN® OXYGEN REGULATOR, FLOE METERS AND HUMIDIFIERS

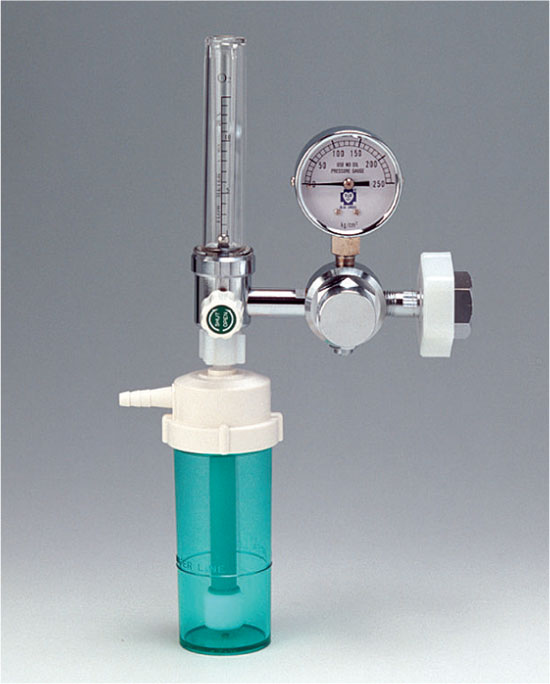

S-40-FH
T1610050　 S-40-FH
Optional parts
Gauge tube Set
Gauge tube
Cap(Float cover)

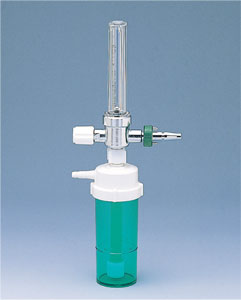

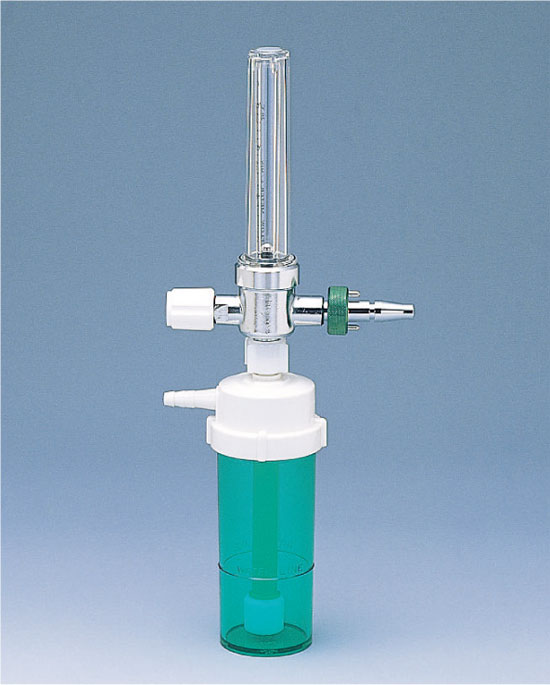

 P-FH
T1610060　 P-FH
※Adupter: KAWAJYU type

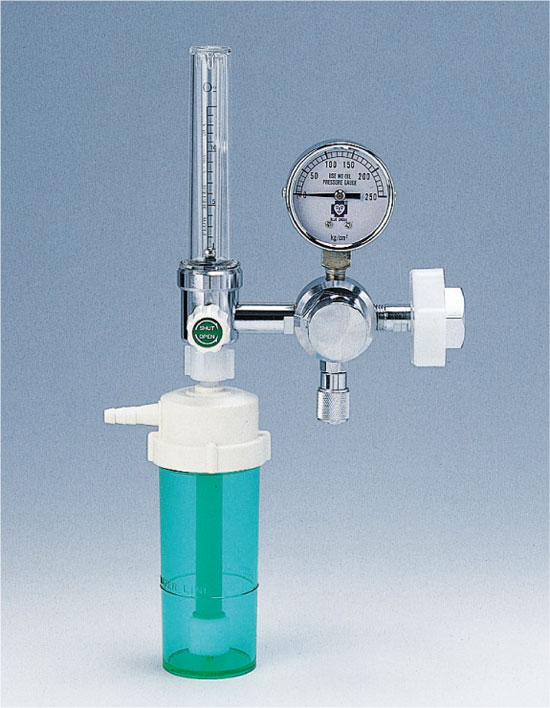

※Without a bottle, product code is T1610140　P-F 		S-40FH-JM
T1610110　 S-40FH-JM
■

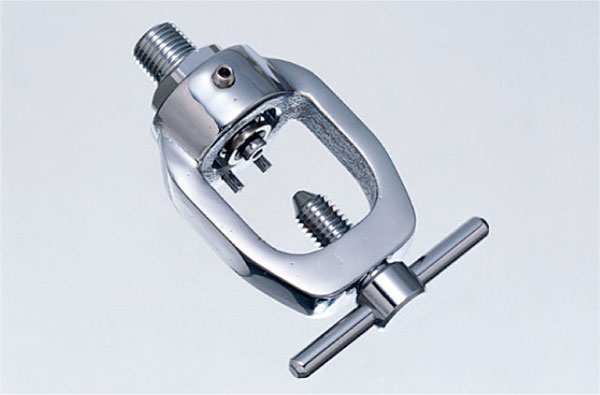

inlet Connection,Yoke

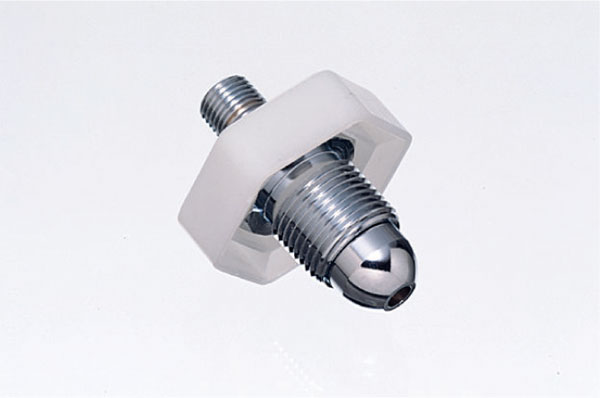

(Pin-index world type) 		inlet Connection,B.S.,
oxgen,5/8"BSP.F-RH
YOKE B.S

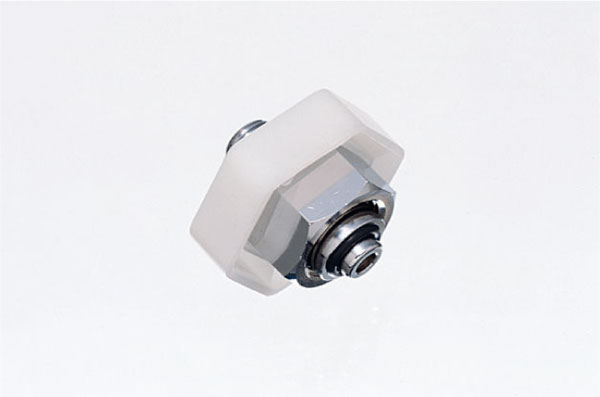

inlet Connection,DIN 477

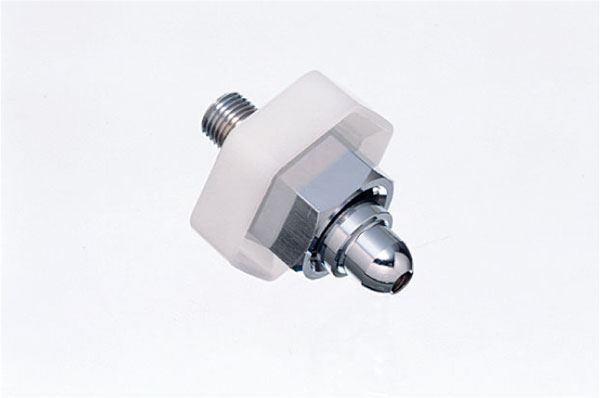

oxygen,W21.8mm 14-RH 		inlet Connection,CGA-540
oxgen,903"14NGO-RH
YDIN 477 CGA-540
※Please select the appropriate type of connector for the cylinder being used.

※All connectors except Yoke type include handle wheel(wrench-free type)
※Connector varies according to the export destination.
BLUE CROSS® EMAGIN® OXYGEN INHALATION SETS (Portable)


■ Portable Oxygen Inhalation Sets can be used indoors or outdoors, for oxygen inhalation and
■ for resuscitation in emergencies.
■ Optional products, like high-density oxygen mask and cannula are available from BLUE CROSS.
■ Please choose optional accessories as required.

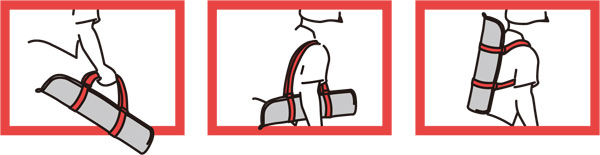

■ Carried by handle, by shoulder strap and as a badkpack.(Shoulder strap and backpack strap are included)


Standard Type (Flow set at：4L/min)
Components 		30mins 60mins
T1610180T1610190
OX-100SOX-200S
BC-S32-4Mini Oxygen Regulator(Flow:4L/min)◯◯
BC-4-1Oxygen Mask with Tube◯◯
BC-6-1SNasal Oxygen Cannula with Tube,Adult◯◯
BC-2020-OC-11L Oxygen Cylinder,Pin-index, Universal type◯
BC-2020-OC-22L Oxygen Cylinder,Pin-index, Universal type◯
BC-03S-OXShoulder Bag, Small◯
BC-03M-OXShoulder Bag, Medium◯
※if bag not required, please order OC-100 or OX-200.

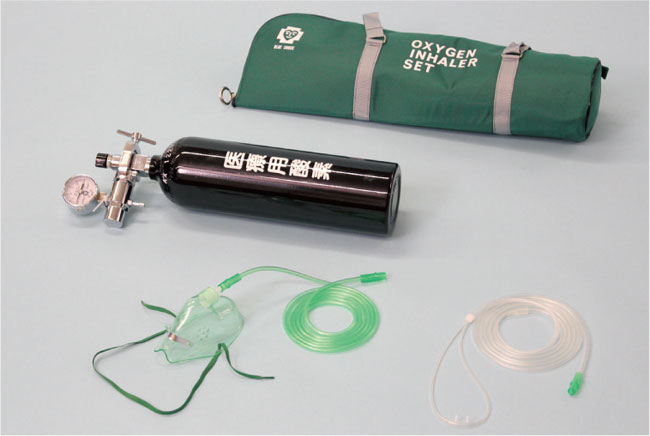

OX-200S

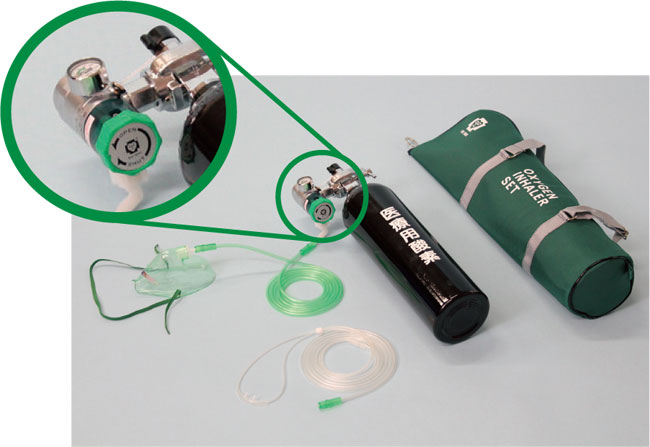

Dial Type(Deluxe)
Components 		T1610200T1610210
OX-100DXOX-200DX
BC-D-Y15Dial type Regulator◯◯
BC-4-1Oxygen Mask with Tube◯◯
BC-6-1SNasal Oxygen Cannula with Tube,Adult◯◯
BC-2020-OC-11L Oxygen Cylinder,Pin-index, Universal type◯
BC-2020-OC-22L Oxygen Cylinder,Pin-index, Universal type◯
BC-03S-OXShoulder Bag, Small◯
BC-03M-OXShoulder Bag, Medium◯
OX-200DX
Extra Accessories
T1630010　BC-2020-OC-1　Oxygen cylinder 1L(Yoke type,iron cylinder)
T1630020　BC-2020-OC-2　Oxygen cylinder 2L(Yoke type, cylinder)

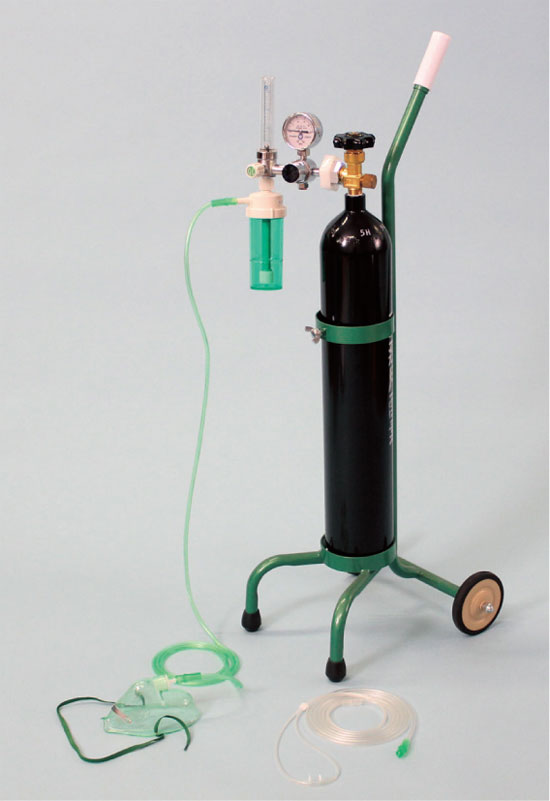

T1610220　OX-500V
. PORTABLE TYPE .
. .
BC-S-40-FH Oxygen Regulator with Flow Meter, Humidifier 1
BC-4-1 Oxygen Face Mask with Tubing 1
BC-6-1S Nasal Oxygen Cannula with Tubing 1
BC-2020-OC-3.5 Oxygen Cylinder, 3.5L 1
BC-CC-500V Vertical Cylinder Cart V-type 1
T1630030　BC-2020-OC-3.5
　Oxygen cylinder 3.5L
T1620010　BC-CC-500V
　Vertical Cylinder Cart V-type

An example of optional items
OX-500V

BLUE CROSS® OXYGEN NASAL CANNULA SOFT
PAT.P

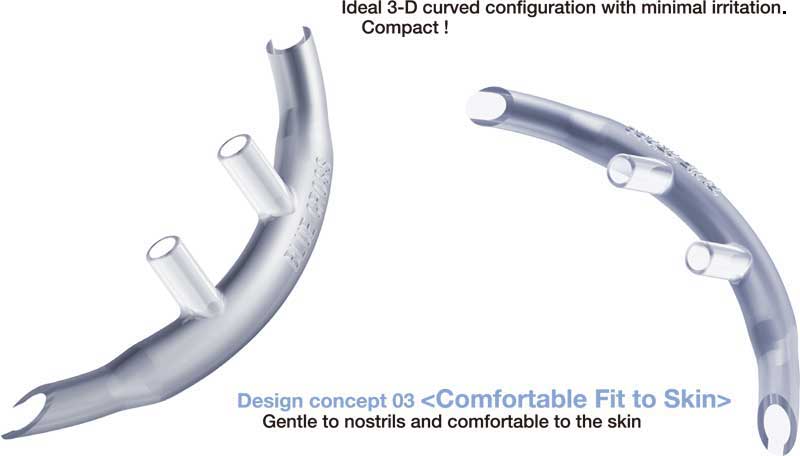

Oxygen Nasal Cannula 6-1S
Designed for comfortable touch, fit and safety to the skin.
It is achieved by its unique double-curved configuration to the face.

Design concept 01 ＜Minimal Wearing Burden＞




＜Soft Material Suitable for Nasal Cannula＞

■ Gentle and soft from the nostril cannula to narrow tube
■ Oval and wider surface is gentle to the skin
■ Tube hanging on ears is soft, narrow and gentle
■ Tube will not easily get twisted


OXYGEN NASAL CANNULA, OXYGEN ＆ EXTENSION TUBE

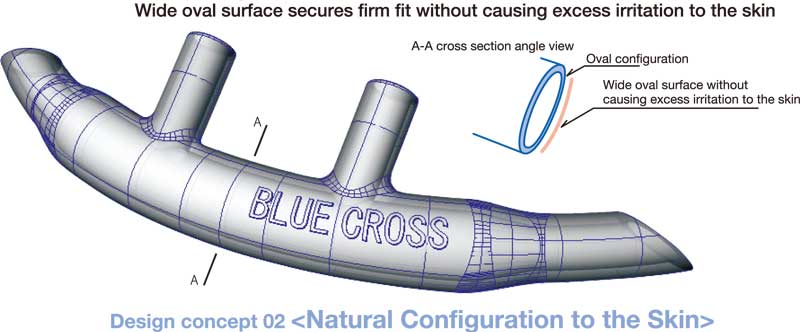

Soft Nasal Cannula is gentle to the skin

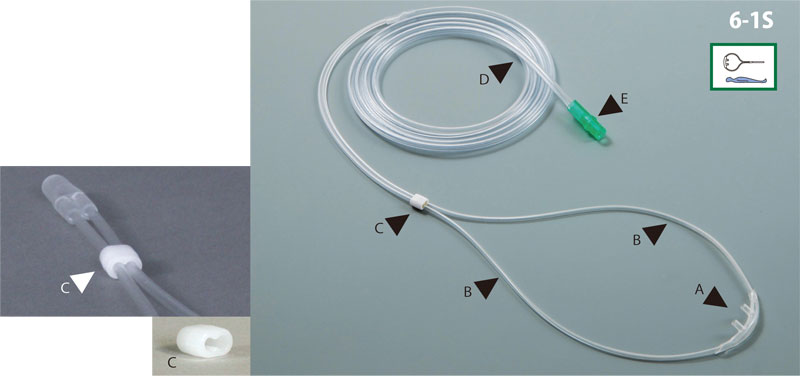

■ Nasal Cannula to nostril(A) and the Narrow Tube hanging on the ears are soft and
■ gentle to the skin. The Nasal Cannula to nostrils is comfortable to the skin due to its
■ oval shape and unique double curved configuration. The Narrow and Soft Tube is
■ gentle to ears and minimizes burden during longtime extended use.



Kink preventiong construction minimizes closing oxygen flow

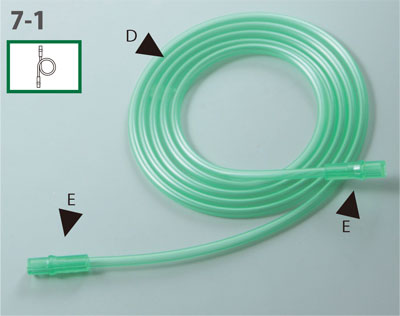

■ Both the Thick Oxygen Tube (D) and the Narrow Nasal Cannula Tube (B) minimize
■ the closing of oxygen flow by a kink.
■ Slide Ring (C) for Narrow Tube (B) has a new configuration which minimizes kinking

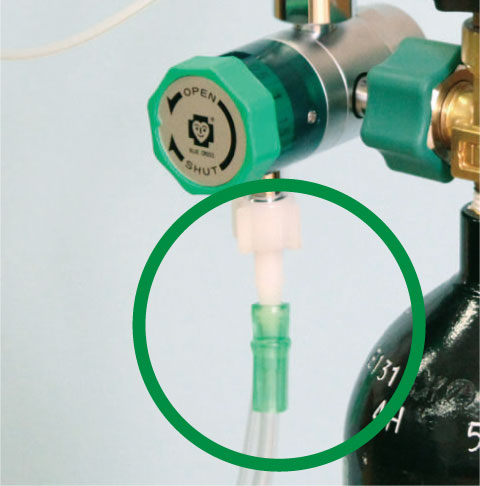

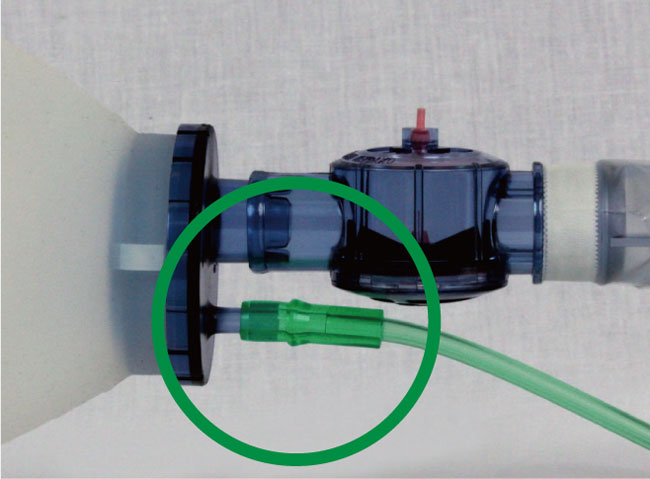

The Tube Connector avoids improper connection
■ The outer shape of Oxygen Tube (D) Connector (E) avoids improper connection to
■ both the endotracheal tube and tracheotomy tube.

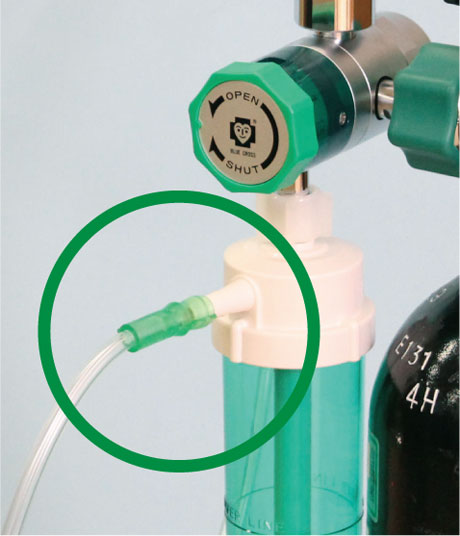

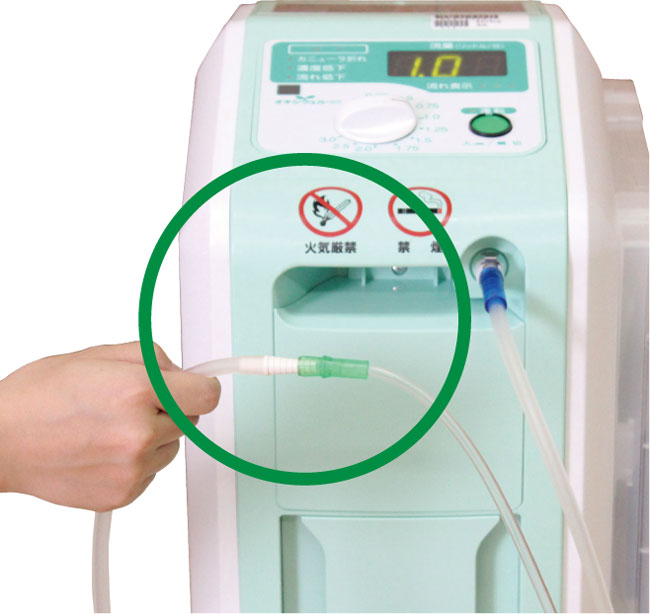

■ The inner shape of Oxygen Tube Connector (E) allows
■ to connection to resuscitator inlet, oxygen inhalator,
■ humidifier and connection tube from oxygen
■ concentrator.
 7-1 7-1
7-1 7-1

BLUE CROSS® OXYGEN MASKS

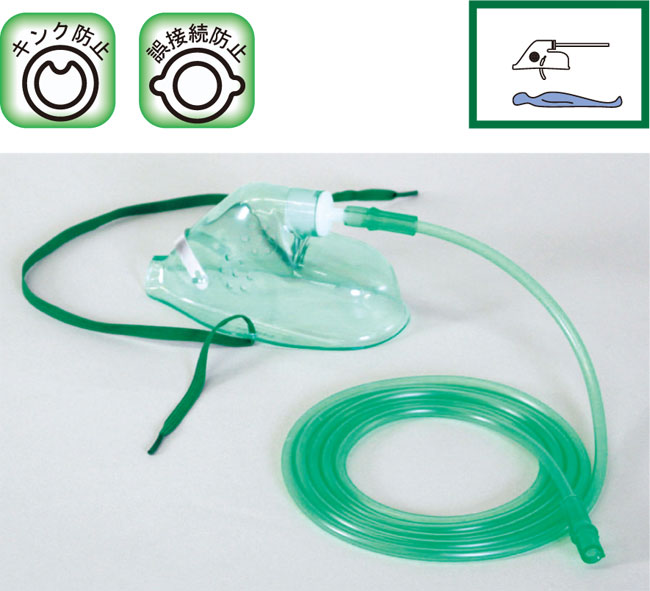

T1610250　No.4-1
Medium density Oxygen Mask
Adult　with Tube　10pcs./box
4-1

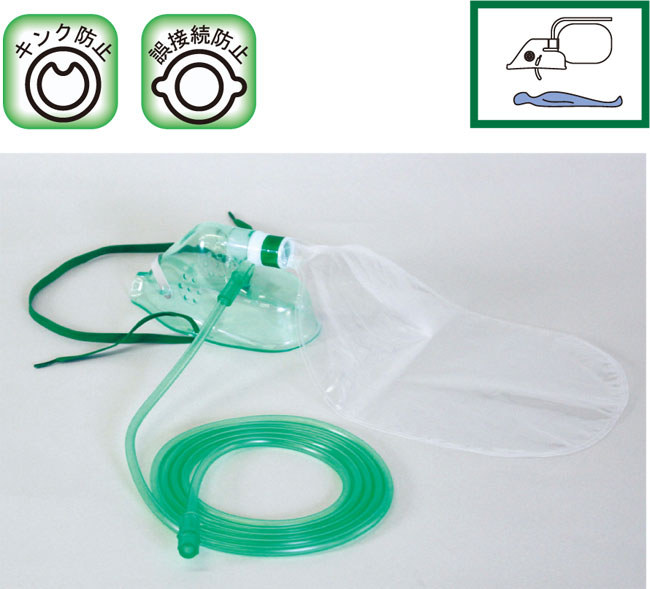

T1610280　No.5-1
High density Oxygen Mask
Adult　with Tube　10pcs./box
5-1

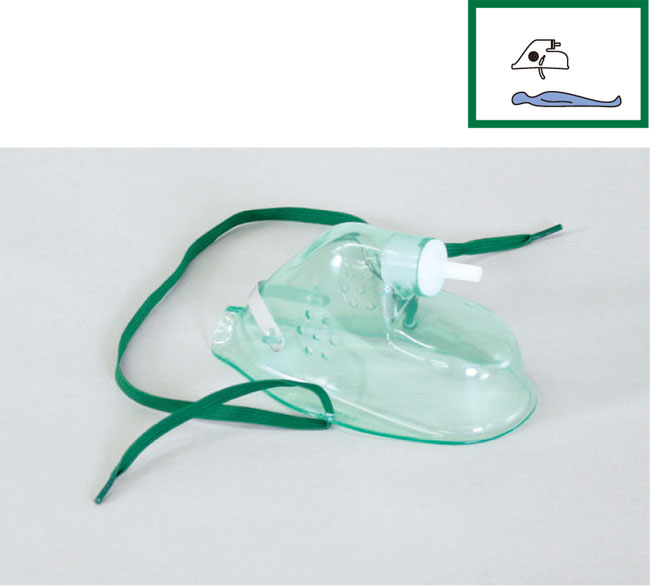

T1610260　No.4-01
Medium density
Adult without Tube　10pcs./box
4-01

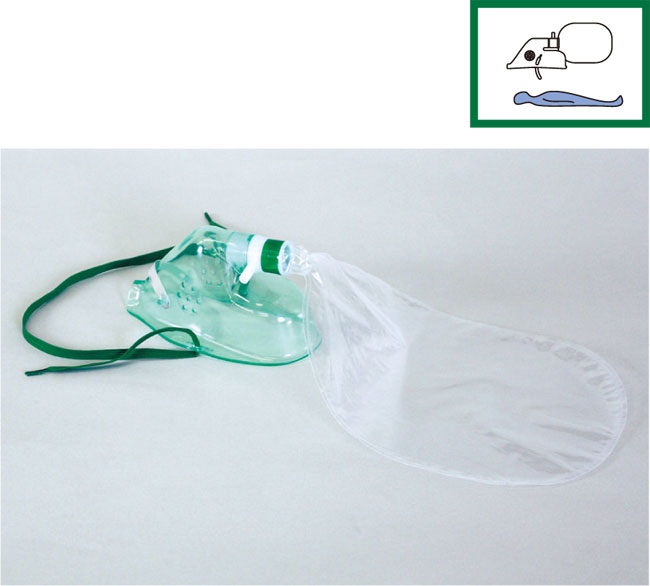

T1610290　No.5-01
High density Oxygen Mask
Adult　without Tube　10pcs./box
5-01

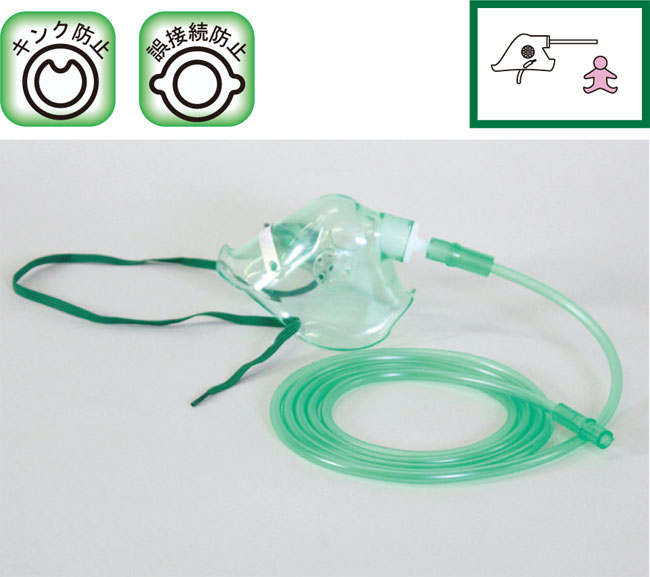

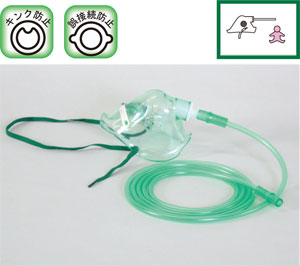

T1610270　No.4-2
Medium density Oxygen Mask
Child with Tube　10pcs./box
4-2

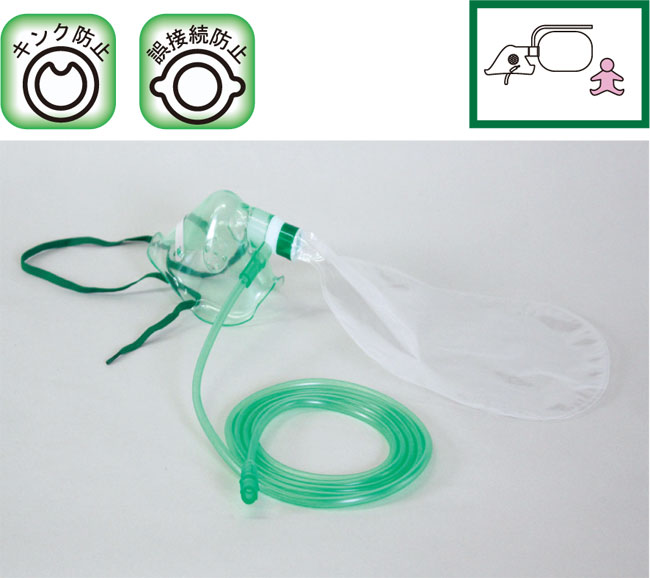

T1610300　No.5-2
High density
Child with Tube　10pcs./box
5-2

BLUE CROSS® OXYGEN NASAL CANNULA,
OXYGEN EXTENSION TUBE ＆ AEROSOL MASKS

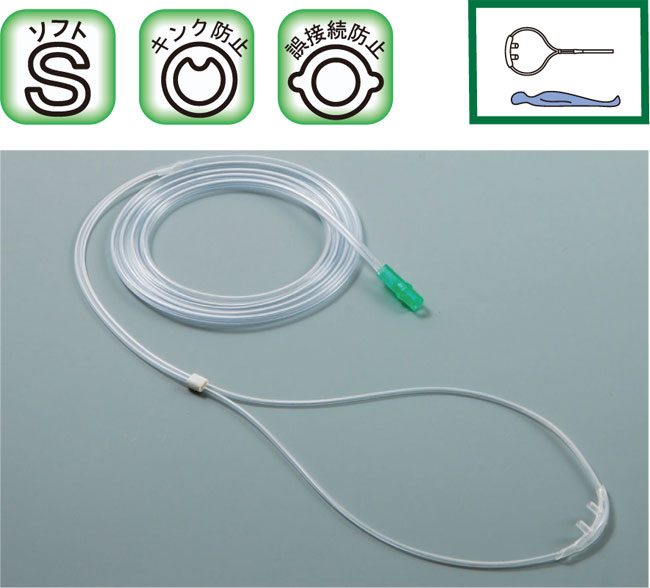

T1610350　No.6-1S
Nasal Oxygen Cannula
Adult with Tube 20pcs./box
6-1S

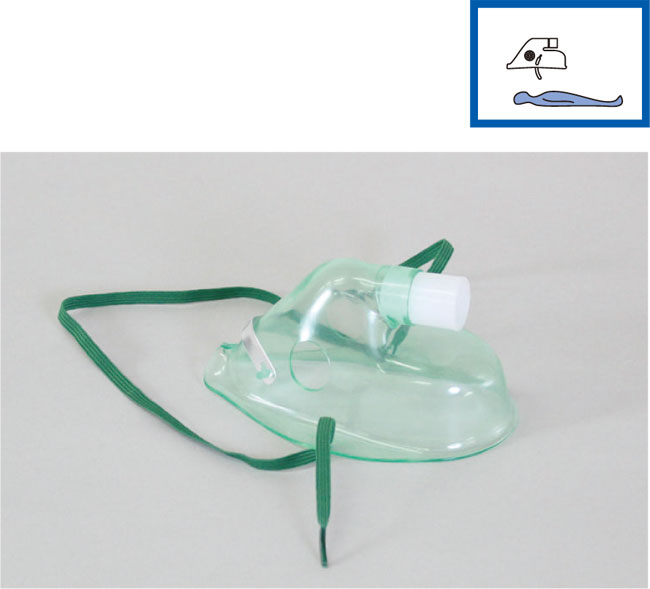

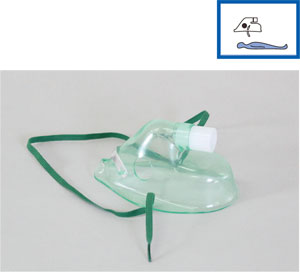

T1610330　No.8-1
Aerosol Mask
Adult　10pcs./box
8-1

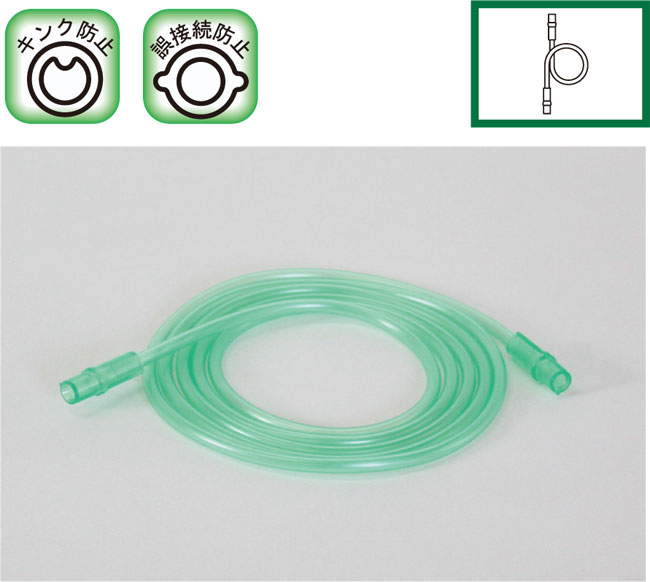

T1610310　No.7-1
Oxygen Extension Tube
Straight Tube with Connector 20pcs./box
7-1

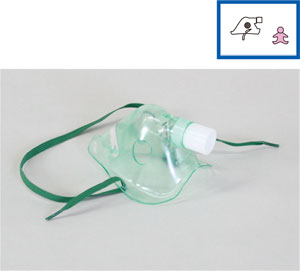

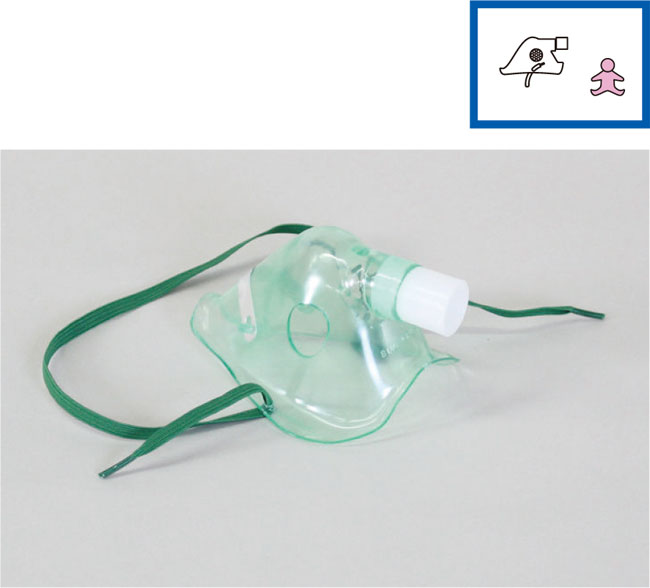

T1610340　No.8-2
Aerosol Mask
Child 10pcs./box
8-2

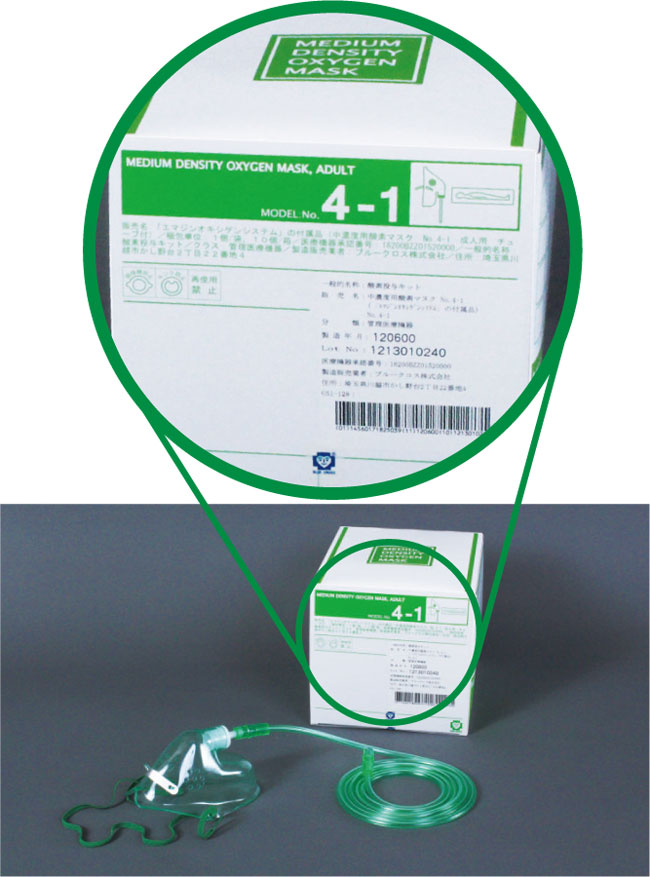

Product features and functions are shown by the icons on the packages of BLUE CROSS Oxygen Masks and Cannulas


Soft material
Tube aboiding circuit closing
Connector avoiding improper connection


Medium density
Oxygen Mask
with Tube, Adult
Medium density
Oxygen Mask
Adult
Medium density
Oxygen Mask
with Tube, Child
Oxygen Cannula
with Tube,
Adult
Oxygen Extension
Tube, Straight
with Connector

High debsity
Oxygen Mask
with Tube, Adult
High density
Oxygen Mask
Adult
High density
Oxygen Mask
with Tube Child
Aerosol Mask,
Adult
Aerosol Mask
Child
