BLUE CROSS® Foot Suction Pump
Desiged for use at Emergency and Disaster Sites

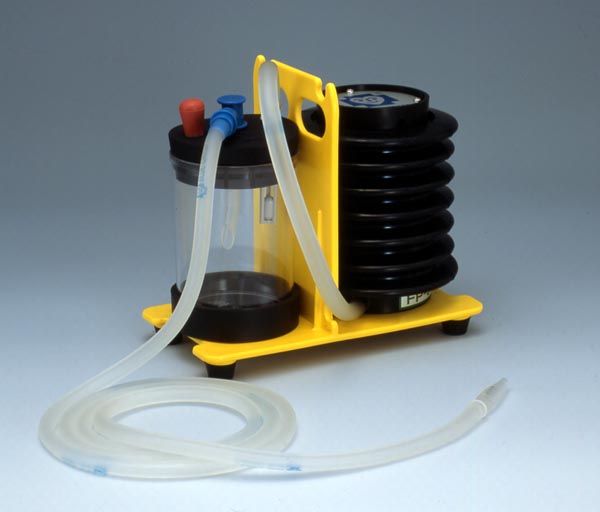

BLUE CROSS Foot Suction Pump

FP-300
FP-300 BLUE CROSS Foot Suction Pump can be used indoors or
outdoors, when an electrical or oxygen power supply is
unavailable.
It is lightweight, compact and easy to use in any emergency.
T1310010 FP-300 T1310020 FP-190
AdultChild
Max Vacuum Pressure-40kPaMax Vacuum Pressure-25kPa
Suction Flow25L/min(Air) Suction Flow16L/min(Air)
Suction BottlePlastic bottle,300mL
(Polycarbonate)
Suction BottlePlastic bottle,300mL
(Polycarbonate)
Unit Size19×10×17cm Unit Size19×10×17cm
Net Weight0.95kg Net Weight0.95kg

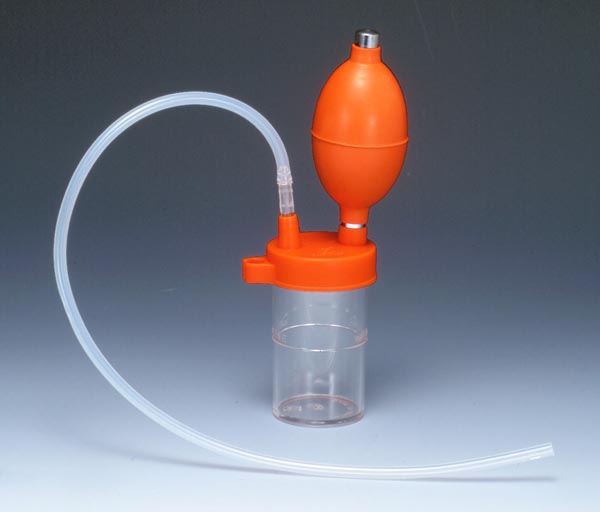

BLUE CROSS® Hand Bulb Aspirator
Designed for use at Emergency and Disaster Sites

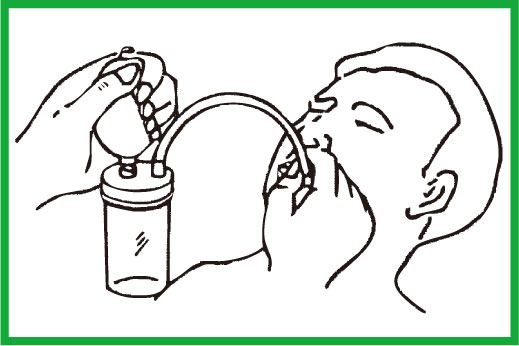

BLUE CROSS Hand Bulb Aspirator

HA-210
HA-210 Manual Suction Unit can be used anywhere for a range
of needs.
From Adult to Infant use, including suctioning of infant
postpartum amniotic fluid.
T1310030 HA-210
Max Vcuum Pressure-28kPa
Suction BottlePlastic bottle,300mL
(Polycarbonate)
Bottle CapSilicone

Opening Airway Instruments & Suction Tubes
Optional items

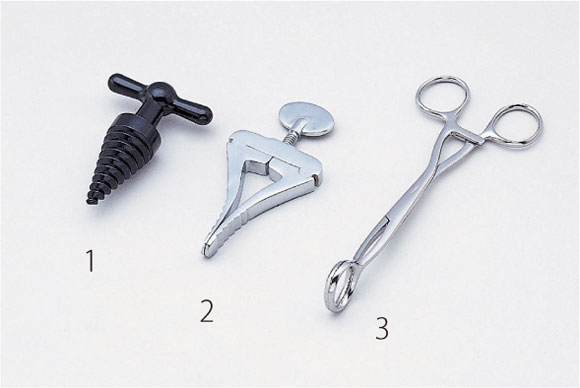

1:Mouth Gag 2:Heister Mouth Gag 3:Tongue Forceps
1
T2010010 BC-2040-MG
Mouth Gag

2
T2030010 BC-2040-MG-H
Heister Mouth Gag

3
T2030020 BC-2040-TF
Tongue Forceps

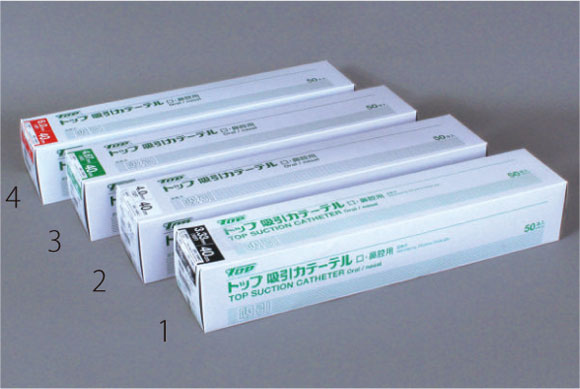

Suction Tubes

1T2030030 BC-2030-SC-10Suction Catheter 10Fr (50 pcs.)
2T2030040 BC-2030-SC-12Suction Catheter 12Fr (50 pcs.)
3T2030050 BC-2030-SC-14Suction Catheter 14Fr (50 pcs.)
4T2030060 BC-2030-SC-18Suction Catheter 18Fr (50 pcs.)

Components OA-FA OA-FCI OA-FACI OA-HA OA-HCI OA-HACI OA-1 OA-2 OA-3
BC-2020-SC-1A Corrugated Tube with Connector
BC-2020-SC-1CI Corrugated Tube with Connector
BC-7-1 Oxygen Tubing
BC-2030-SC-10 Suction Catheter 10Fr
BC-2030-SC-12 Suction Catheter 12Fr
BC-2030-SC-14 Suction Catheter 14Fr
BC-2030-SC-18 Suction Catheter 18Fr
BC-2040-TC Tongue Depressor
BC-2040-MG Mouth Gag
BC-2040-MG-H Heister Mouth Gag

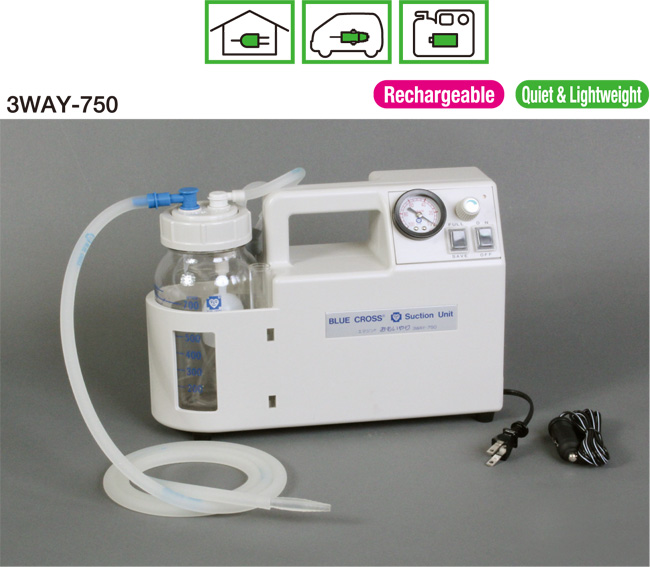

BLUE CROSS® Suction Unit 3WAY-750
For use in an emergency, for nursing home and general healthcare

The BLUE CROSS Suction Unit 750 Series is world renowned for its ease of use and
sage suction of all fluids(blood, vomit etc.)from the airways of adults and infants


3WAY-750
Energy saving in SAVE mode
A choice of three power sources means it can be used anywhere:
inside,outside,in a vehicle or during a power failure
A one-hour charge will give non-stop operation of 60 minutes on FULL
90 minutes on SAVE ※1
Battery charging indicator light/alarm system/sagety features
FULL/SAVE. Two modes of operation
Long-life due to the quiet, brushless DC Motor
Retractable power cord
 ※Blue Cross Potable Suction Units are equipped with long-life brushless DC Motors
 ※ for durability and minimal noise and vibration.

3WAY-750

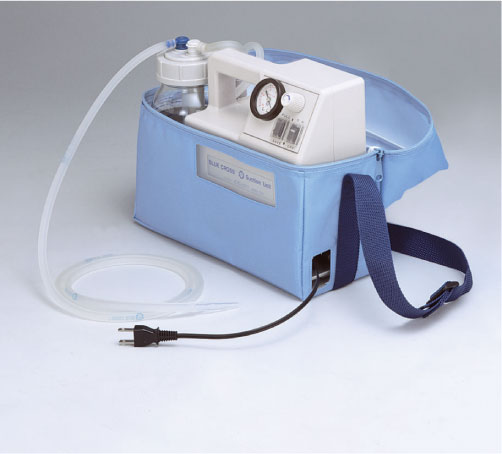

3WAY-750 is equipped with
Carry Bag
T1310060
3WAY-750
Power Source AC100-120V/AC220-240V (50/60Hz)
DC12V car battery
Built-in rechageable battery (12V1500mAh)
Class ClassⅡ B-Type equipment
Power Consumption 30VA (15W)
Suction Pump Single pump Bruchless DC mortor
Max. Suction Pressure -80kPa (-60cmHg)
Exhaust Air Volume 15±2L/min
Suction Bottle 750mL (polycarbonate)
Unit Size 30.5×10×22.5cm
Weight 2.2kg
 ※Suction catheter is separately.
 ※BLUE CROSS Suction Units have been developed taking into account the delicate skin of children and some adults.
 ※At night, it may be advisable to run the unit on quiet SAVE mode(reducing exhaust air by 20%).
 ※Suction power can be easily adjusted using the control knob.
 ※1Data verified by our company.

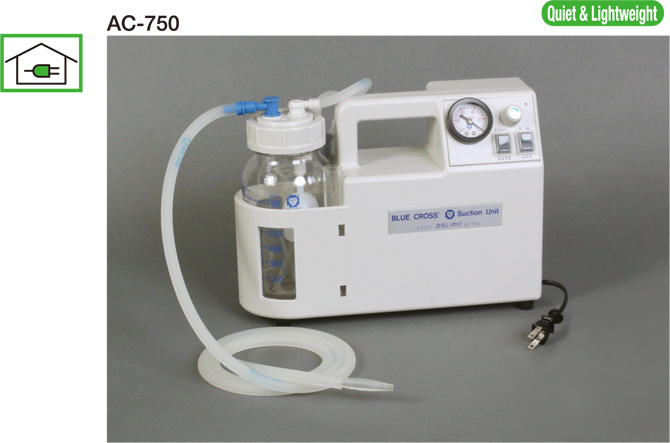

BLUE CROSS® Suction Unit AC-750
For use in an emergency, for nursing home and general healthcare

Blue Cross Portable Suction Units 750 Series are designed for aspirating foreign objects,
bomit and secretion easily and safely from airway
AC-750
Energy saving in SAVE mode
Operates on high-power FULL mode and quiet SAVE mode
The overflow prevention sagety valve in both the suction bottle and
the auxiliary bottle provide a double safety system
FULL/SAVE. Two modes of operation
Long-life brushless DC motors for durability and lightweight and
minimal noise, vibration and heat
Retractable power cord and moisture-resistant electric switch
 ※Blue Cross Potable Suction Units are equipped with long-life brushless DC Motors
 ※ for durability and minimal noise and vibration.

T1310070
AC-750
Power Source AC100-120V/AC220-240V (50/60Hz)
Class ClassⅡ B-Type equipment
Power Consumption 30VA (15W)
Suction Pump Single pump Bruchless DC mortor
Max. Suction Pressure -80kPa (-60cmHg)
Exhaust Air Volume 15±2L/min
Suction Bottle 750mL (polycarbonate)
Unit Size 30.5×10×22.5cm
Weight 1.9kg
 ※Suction catheter is separately.
 ※BLUE CROSS Suction Units have been developed taking into account the delicate skin of children and some adults.
 ※At night, it may be advisable to run the unit on quiet SAVE mode(reducing exhaust air by 20%).
 ※Suction power can be easily adjusted using the control knob.

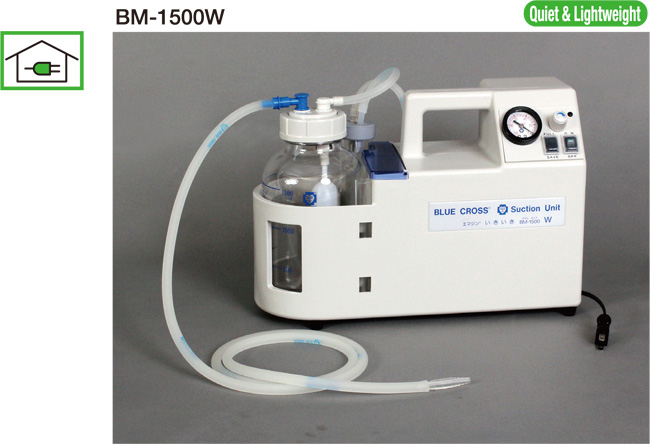

BLUE CROSS® Suction Unit BM-1500W
Fesignes for durability, quit and lightweight

Advanced Suction Unit has a powerful high speed double pump
with long-life crushless DC motor,wspecially suitable for the suction of sticky vomit.

BM-1500W
Energy saving in SAVE mode
Operates on high-power FULL mode and quiet SAVE mode
The catheter holder and built-in tube storage compartment mean
the unit can be used hygienically
The oberflow prevention safety valve in both the suction bottle and
the anxiliary bottle provide a double sagety system
Long-life brushless DC motor for durability and lightweight
Minimal noise, vibration and heat
Retractable power cord, moisture-resistant electric switch



T1310100
BM-1500W
Power Source AC100-120V/AC220-240V (50/60Hz)
Class ClassⅡ B-Type equipment
Power Consumption 45VA (25W)
Suction Pump Double pump Bruchless DC mortor
Max. Suction Pressure -80kPa (-60cmHg)
Exhaust Air Volume 22±2L/min
Suction Bottle 1500mL (polycarbonate)
Unit Size 38×15.5×26cm
Weight 2.8kg
※Suction catheter is sold separately
※BLUE CROSS Suction Units habe been developed taking into account
the delicate skin of children and some adults.
Atnight, it may be advisable to
run the unit on quiet SAVE mode (reducing exhaust air by 20%).
Suction power can be easily adjusted using the control knob.

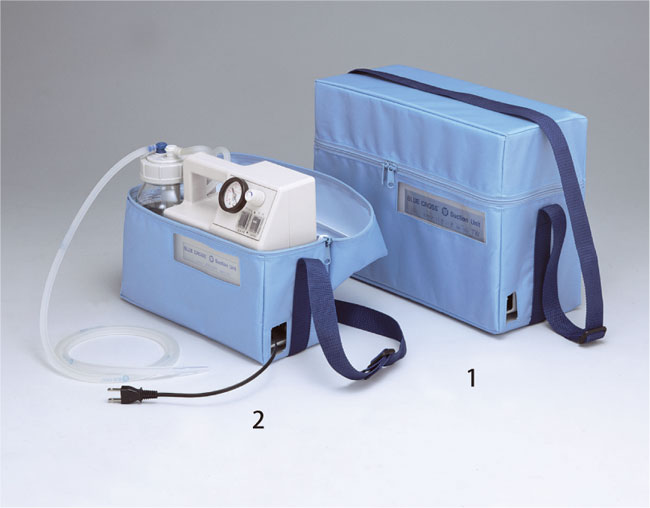

Carry Bag
Carry Bag is suitable for attendant service and
home nursing visit. Carry Bag
1 T1820210 BC-012L-CB Carry Bag Large Fit for BM-1500W
2 T1820220 BC-012S-CB Carry Bag Small Fit for 3WAY-750

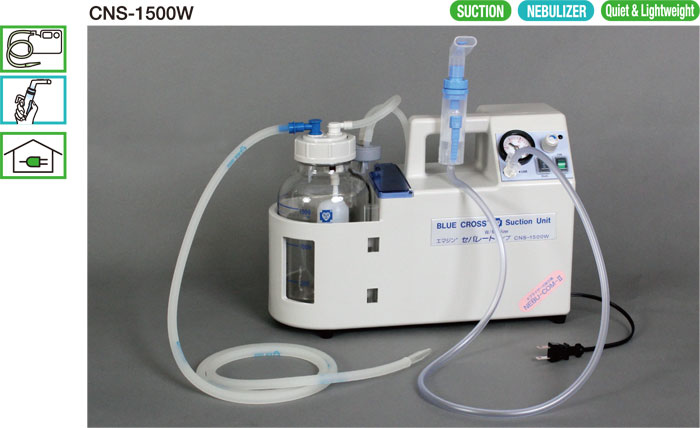

Compact Unit combines powerful suction and a quiet Nebulizer

This Suction Unit has a powerful double pump,
and a separate quiet single pump for operation of the Nebulizer.



The Portable Suction Unit with Nebulizer is equipped with two brushless DC motors so
that either, the Suction Unit cannot be used. As a result there won't be any
exhaust from the Suction Unit.
This allows the Nebulizer to be used hygienically and comfortably.
The Nebulizer operates quietly due to its quiet single pump.

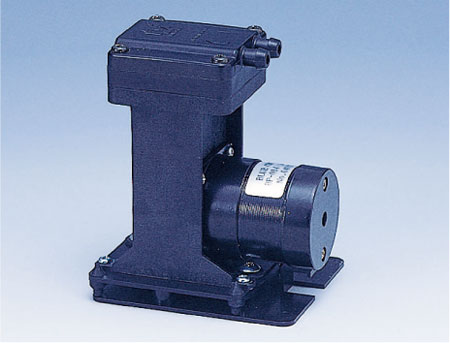

Single Nebulizer Pump

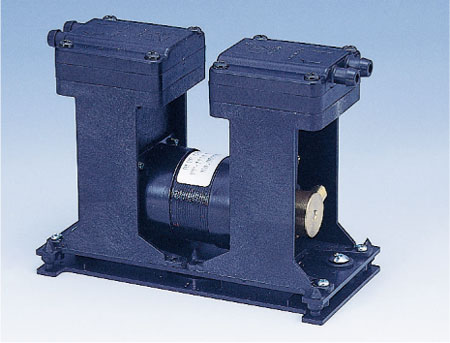

Doube Suction Pump

T1310090
CNS-1500W
 Power Source  AC100-120V / AC220-240V (50/60Hz)
 Class  ClassⅡ・B-type equipment
 Power consumption  Suction 45VA (25W)
 Nebulizer 30VA (15W)
 Max. Suction Pressure  -80kPa (-60cmHg)
 Exhaust air volume  22±2L/min
 Suction bottle  1500mL (Polycarbonate)
 Max. Nebulizer Pressure  170kPa
 Max. Nebulizer Flow Rate  10L/min
 Aerosol Flow Rate  0.3mL/min
 Average Particle Size  1~8μm
 Medication Cup Capacity  8mL
 Adequate Medicine Volume  2~8mL
 Accessory  NEBU-COM KIT / Air Hose
 Unit Size  38×15.5×26cm
 Weight  3.8kg

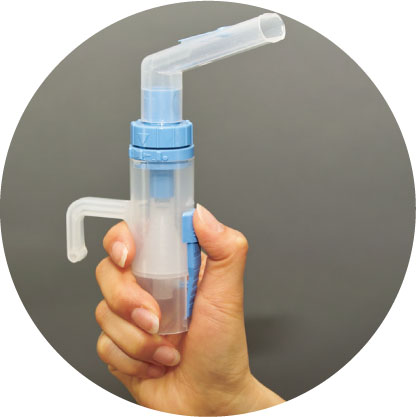

Nebu-Com kit can be used when held at an angle, and the ON/OFF switch can be done by hand.
 ※Suction catheter is sold separately.

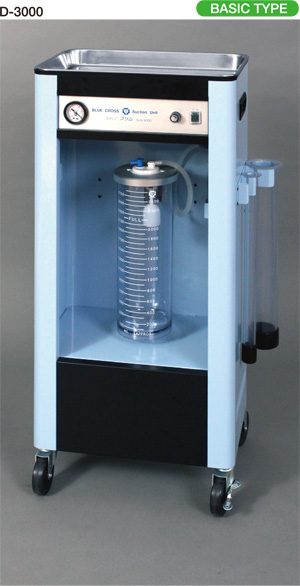

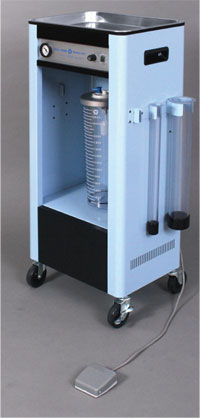

BLUE CROSS® Large Suction Unit (floor Type) D-3000
For Professional Use with an Endoscope, for hospital treatment

Choice of reusable Suction Bottle or disposable Suction Bottle.
Slim design, steel construction with a deep tray on the top.
Wide castors for ease and sagety of movement.
A second catheter holder ensures hygienic use.
Large reusable Suction Bottle, made of strong polycarbonate, compact and easy to carry

D-3000
T1310110
D-3000
Power Souce AC100-120V / AC220-240V 50/60Hz
Class ClassⅠ B-Type equipment
Power Consumption 140VA(130W)
Suction Pump Double AC Motor
Max. Suction -80kPa (-60cmHg)
Exhaust Flow 50Hz 38±2L/min
60Hz 45±2L/min
Suction Bottle 3000mL (Polycarbonate Bottle)
Unit Size 40×28×90cm
Weight 25kg

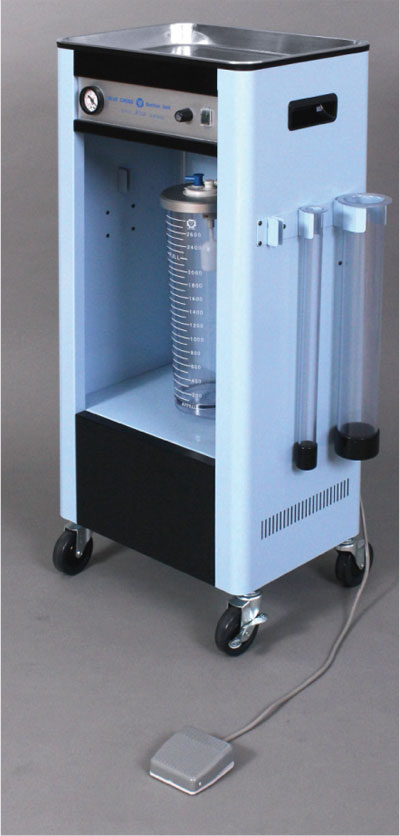

D-3000 Foot Switch


Foot Switch


Optional Item
Simple one-touch ON/OFF Foot Switch
Please indicate, at the time of ordering,
if you require the optional Foot Switch



The D-6000 Suction Unit is the same as the D-3000 Suction Unit above, but with two Suction Bottles.
